Aims…
2.1 use the following units: ampere (A), coulomb (C), joule (J), ohm (Ω), second (s), volt (V), watt (W).
2.2 understand how the use of insulation, double insulation, earthing, fuses and circuit breakers in a range of domestic appliances.
2.3 understand why a current in a resistor results in the electrical transfer of energy and an increase in temperature, and how this can be used in a variety of domestic contexts
2.4 know and use the relationship:
power = current × voltage
P = I × V or P=VI
and apply the relationship to the selection of appropriate fuses
2.5 use the relationship between energy transferred, current, voltage and time:
energy transferred = current × voltage × time
E = I × V × t OR E =VIt
2.6 know the difference between mains electricity being alternating current (a.c.) and direct current (d.c.) being supplied by a cell or battery.
Resources….
Use this PowerPoint & Quiz for a quick review…
Quiz on Mains
Video Clips…
Resistance Heating: It is useful to think about Power is converted in an oven heating element. P = VI or Ploss = I2R so in this case we are trying to transfer energy to the surroundings as radiation (IR) by heating.
AC v DC: It is useful to look at the flow of electricity from a set of DC cells OR and AC power pack (note the power pack can also give out smoothed DC.

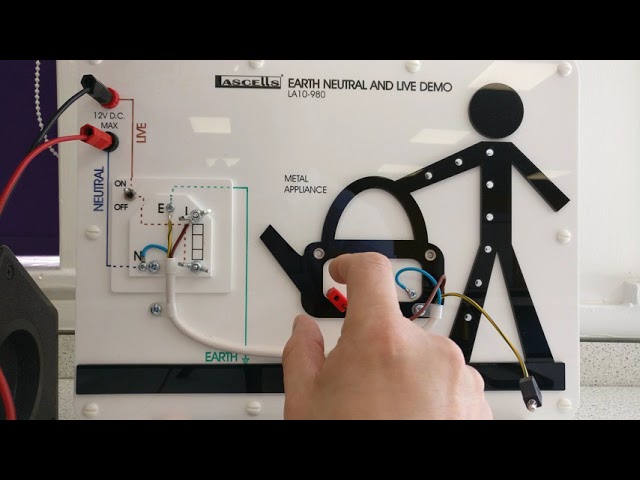

3 Pin Plug: This small equipment board shows what happens if you connect yourself to the wrong parts of a 3 pin plug. It should “burn” or “melt” the fuse this stop the circuit working..
Fuse Wire: This is a bigger version of what happens when too much current in Amperes flows in a circuit.
Transformer Coils: This transformer coil shows what happens when you step down the potential difference and increase the current.
Circuit Breaker: A breaker in this case stops current flowing just like a fuse. However, it relies on an electromagnet which then can be reset when the current returns to normal.
Alarm Bell: This simple application of an electromagnet shows how when the circuit is broken the attraction stops and then the circuit is remade again and the cycle continues.
Electricity Meters and Bills: Everyone needs to know how to read one and understand what you pay and why!
Generation of AC: At the Hoover Dam we generate AC electricity, this video explains why it is AC
National Grid: A short video to explain how the energy is delivered to our homes.
2B Mains Electricity iGCSE Key Physics Section Summary
This video is a simple introduction to Physics subjection within the specifications for Pearson's iGCSEs. The full content can be found here...https://www.animatedscience.co.uk/ but it is designed to be a ...quick verbal and visual overview of content.Show More2B Mains Electricity iGCSE Key Physics Section Summary
This video is a simple introduction to Physics subjection within the specifications for Pearson's iGCSEs. The full content can be found here...https://www.animatedscience.co.uk/ but it is designed to be a ...quick verbal and visual overview of content.Show More Resistance heating with SMEG cooking element
Disclaimer: please never try this at home 40A from a cooker will kill you on first touch!
This is a video to show you how a cooker element transformed energy via ...electrical mechanisms to Infra Red radiation which cooks your food. This element is usually covered by a plate which I took out to change the element and do a deep oven clean.Show More Alternating Current v Direct Current GCSE
This is a simple video to show electrical current with an AC and then DC source. You can see how the alternating current is a wave which has a frequency ...of 50Hz and direct current is just steady.Show More 3 Pin Plug, Earthing and Fuses Lascells Kit
This is a simple demo which clearly shows how a 3 Pin Plug works.
You can see the concept of a fuse and Earthing.
Upstairs and Downstairs Lighting - Single pole double throw switch
This is a really simple exam of how you can have two switches controlling the same circuit and you can turn it on and off from different places i.e. upstairs ...and downstairs.
The switches are called...."single pole double throw" for obvious reasonsShow More Transformer Melting a Nail - Very Dangerous
This video is a bit of fun. If you take a 13A 230V primary connection on 800 turns and reduce N to just 5 turns the current increase is to ...about 2000A.
This means the nail will be extremely dangerous to touch and this would kill you. So take care!
If you use the transformer equation then the power equations you can work out the output current assuming 100% transfer.
Vp/Vs = Np/Ns
Pp = IpVp
Ps = IsVsShow More Bimetallic Circuit Breaker GCSE Physics
This is a great video to show a thermal circuit break works and bimetallic strip function. Both are required concepts for GCSE Physics for Mechanical Circuit Breakers or MCBs
Alarm bell example of Electromagnets
How does an alarm bell work? Watch the slow motion video?
How to Read Your Electric Meter and Submit a Reading - British Gas
How to read an electric meter and submit an accurate reading to ensure you don't end up overpaying on your energy bill. Discover more energy saving tips here: http://bit.ly/bgenergytips or ...subscribe to our YouTube channel: http://goo.gl/Bv7M2D
You can submit your electricity reading online or via the British Gas Energy App, online, by phone or via text. Your meter is usually located in a tucked away place, like under the stairs or if you live in an apartment building they may be located in shared space, such as the hallways. Here's how to read different types of electricity meters:
Single Rate Meter
You need the first five digits, reading from right to left, so you can ignore the last one which might be highlighted in red.
Two Rate Meter
You'll need the first five digit numbers from both rows, reading from left to right, so you can ignore the last number in red again.
Two Rate Single Display Meter
You'll need both five digit numbers, reading from left to right. Some meters will automatically switch between the two numbers, while others you will need to push a button to switch between the two.
Dial Meter
You'll need to read the first five dials from left to right and make a note of the number the pointer is indicating. If the pointer is in the middle, note down the lower number. Remember to check which way the numbers are going as they may differentiate between dials.
Download our app: https://www.britishgas.co.uk/mobile-app.html
Submit reading online: https://www.britishgas.co.uk/meterreads
#meterreading #meterShow More HOW IT WORKS: The Hoover Dam
Building, construction, and design is thoroughly explained.
Power Stations & The National Grid | Electricity | Physics | FuseSchool
The flick of a switch, that’s how easy it is to get electricity, right?
If you’re one of the lucky ones, then yes.
But in 2017 there are still over 1 billion ...people who do not have access to electricity.
In this video we will discuss how electricity is generated and transferred to our homes, for those of us fortunate enough to have it.
There are a variety of ways in which electricity is generated or made.
How many can you think of?
Solar panels, Wind turbines, Biomass, hydroelectric, nuclear and fossil fuels And then there is also geothermal energy, tidal power and wave power as well.
Except for burning fossil fuels and nuclear, the rest are renewable sources of energy.
Currently about 80% of the world’s energy comes from fossil fuels.
First, we’re going to have a look at burning fossil fuels in power stations, to generate energy.
And then we’ll look at the national grid - which is relevant for both non-renewable and renewable energies.
Fossil fuels in power stations.
Most power stations use coal as an energy source, and they work in the following way.
Coal is burned in a power station.
The heat produced as the coal burns is used to heat water.
The water boils and turns into steam.
This steam is used to turn the blades of a turbine.
A turbine looks like a fan or a wind turbine.
The turbine turns a generator.
Inside, wires turn within magnets to generate electricity.
So that was a fossil fuel power station.
These next steps are for energy generated from any source - whether it’s fossil fuels or renewable like wind-powered substations or biomass fuelled.
The electricity, whether renewable or not, is passed through transformers and wires, within the national grid, that carries it to our homes.
So, what exactly is the National Grid?
The National Grid is a system of cables and transformers linking power stations to consumers.
Have you ever felt an electrical wire and noticed it gets hot?
This is because some energy travelling through the wire is lost as heat. In order to lose as little energy as possible, transformers are used.
When the electricity leaves the power station it passes through a step-up transformer. Power station @ 25,000 V
A step-up transformer increases the voltage and reduces the current. National grid cables @ 275,000 V
Reducing the current makes the transfer of electricity more efficient, as less energy is lost as heat.
Before the electricity gets to our homes, the voltage needs to be reduced back down to a safe level. The electricity therefore passes through a step down transformer. Household @ 230 V
So, now you know how electricity is generated and sent to our homes, it’s not quite as simple as flicking a switch. Quite a lot of infrastructure is needed.
SUBSCRIBE to the FuseSchool YouTube channel for many more educational videos. Our teachers and animators come together to make fun & easy-to-understand videos in Chemistry, Biology, Physics, Maths & ICT.
VISIT us at http://www.fuseschool.org, where all of our videos are carefully organised into topics and specific orders, and to see what else we have on offer. Comment, like and share with other learners. You can both ask and answer questions, and teachers will get back to you.
These videos can be used in a flipped classroom model or as a revision aid.
Find all of our Chemistry videos here:
https://www.youtube.com/watch?v=cRnpKjHpFyg&list=PLW0gavSzhMlReKGMVfUt6YuNQsO0bqSMV
Find all of our Biology videos here:
https://www.youtube.com/watch?v=tjkHzEVcyrE&list=PLW0gavSzhMlQYSpKryVcEr3ERup5SxHl0
Find all of our Maths videos here:
https://www.youtube.com/watch?v=hJq_cdz_L00&list=PLW0gavSzhMlTyWKCgW1616v3fIywogoZQ
Twitter: https://twitter.com/fuseSchool
Access a deeper Learning Experience in the FuseSchool platform and app: http://www.fuseschool.org
Follow us: http://www.youtube.com/fuseschool
Friend us: http://www.facebook.com/fuseschool
This Open Educational Resource is free of charge, under a Creative Commons License: Attribution-NonCommercial CC BY-NC ( View License Deed: http://creativecommons.org/licenses/by-nc/4.0/ ). You are allowed to download the video for nonprofit, educational use. If you would like to modify the video, please contact us: info@fuseschool.orgShow More Q3 2B Mains Electricity June 2018 iGCSE Physics
This is a quick video walkthrough of an Edexcel exam question. It is designed so you can look at questions which relate to questions from specific parts of the course.
It ...is taken from a real paper and I have used a real mark scheme which I have adapted for on-screen use. If you listen carefully it will give you a really good idea of what an examiner is looking for.Show More 50Hz Mains and Lightbulb Flicker - AQA A Level Physics
This video shows how a signal generator can be used to produce a AC or Alternating Current trace which turns the light bulb on and off quickly.
You can see ...how mains which is delivered at 230V DC Equiv (peak +/-325) at 50Hz does not a much of a flicker. Also how the 100Hz is more stable.Show More Sparking Power lines and Mist in Derbyshire
Power lines will leak charge on a misty day. This is why you can heat the discharge.
Also note it is due to the High tension of the lines or ...high PD.
Powerloss is due to the power equation...
Ploss = I^2 x R
So less current means least wasted energy.Show More 2020 New Year's Eve - Burn Baby Burn - Physics Magic Trick
Last movie of 2020 where I use the potential difference on a piece of iron wool to set it on fire. Amazing how an electrical current starts the oxidation process ...which then without a push or potential difference moves through the wire as if by magic.
if you are looking for a magic trick you hide the battery in your hand and waft it over the wool for a cool effect.
Happy new year all.Show More
